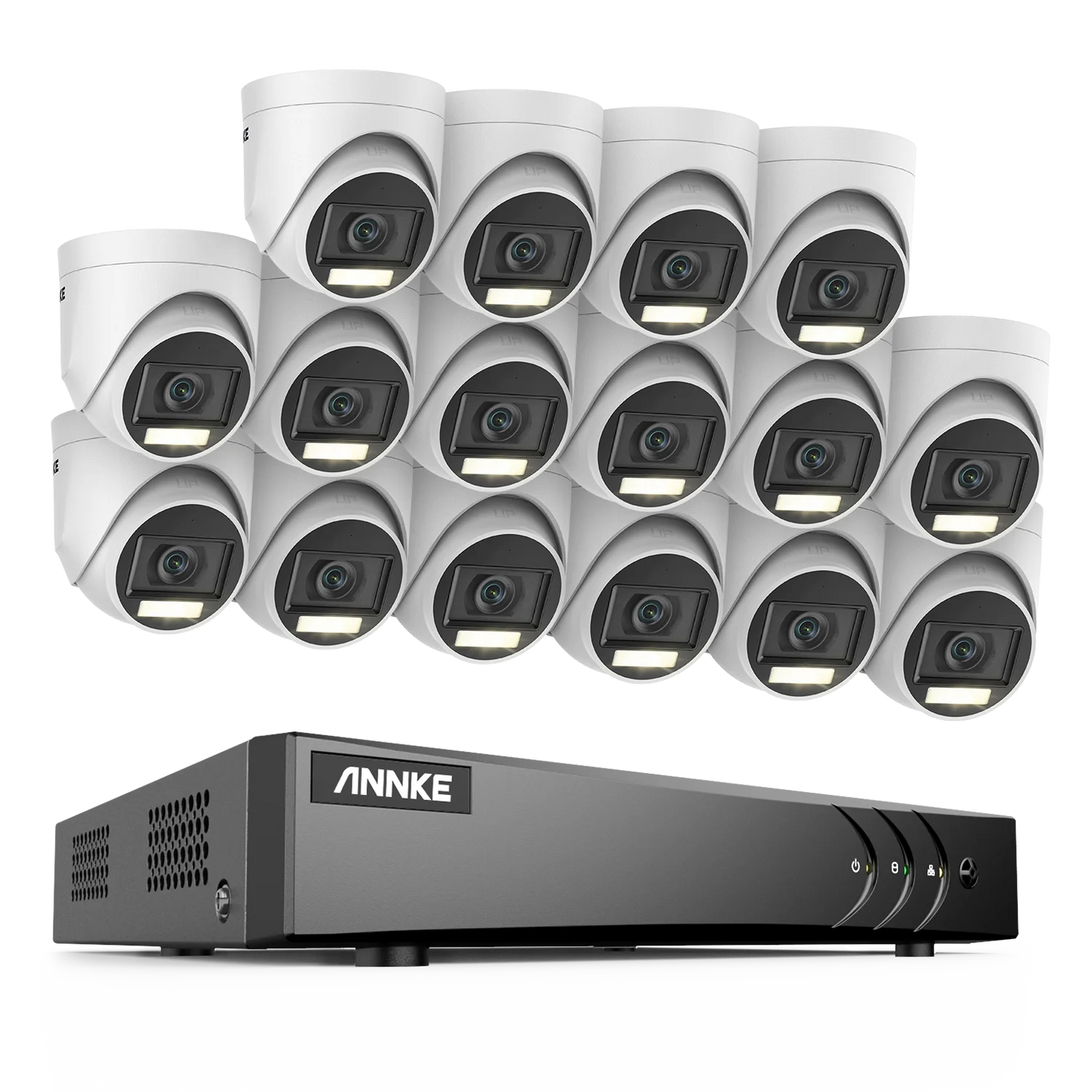

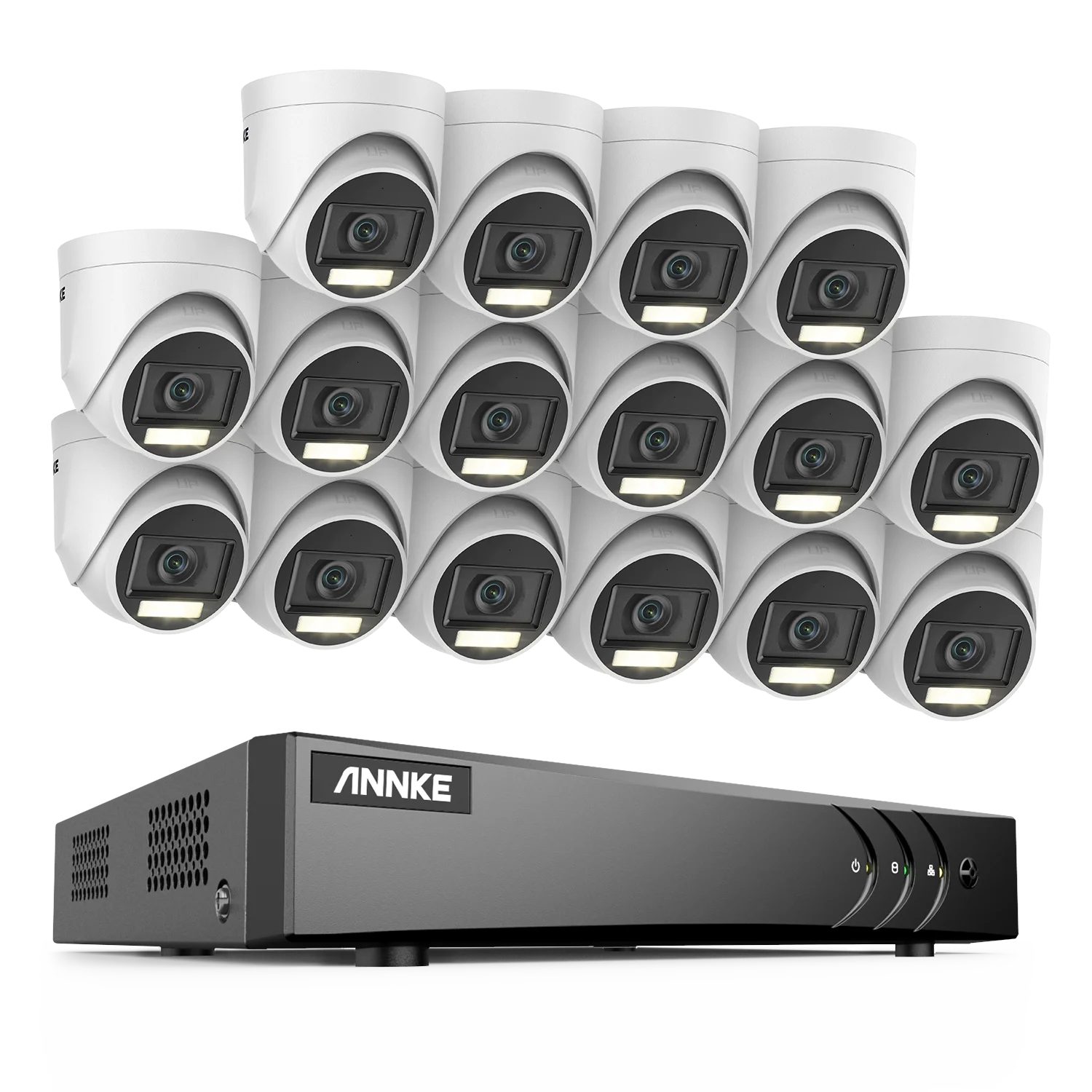

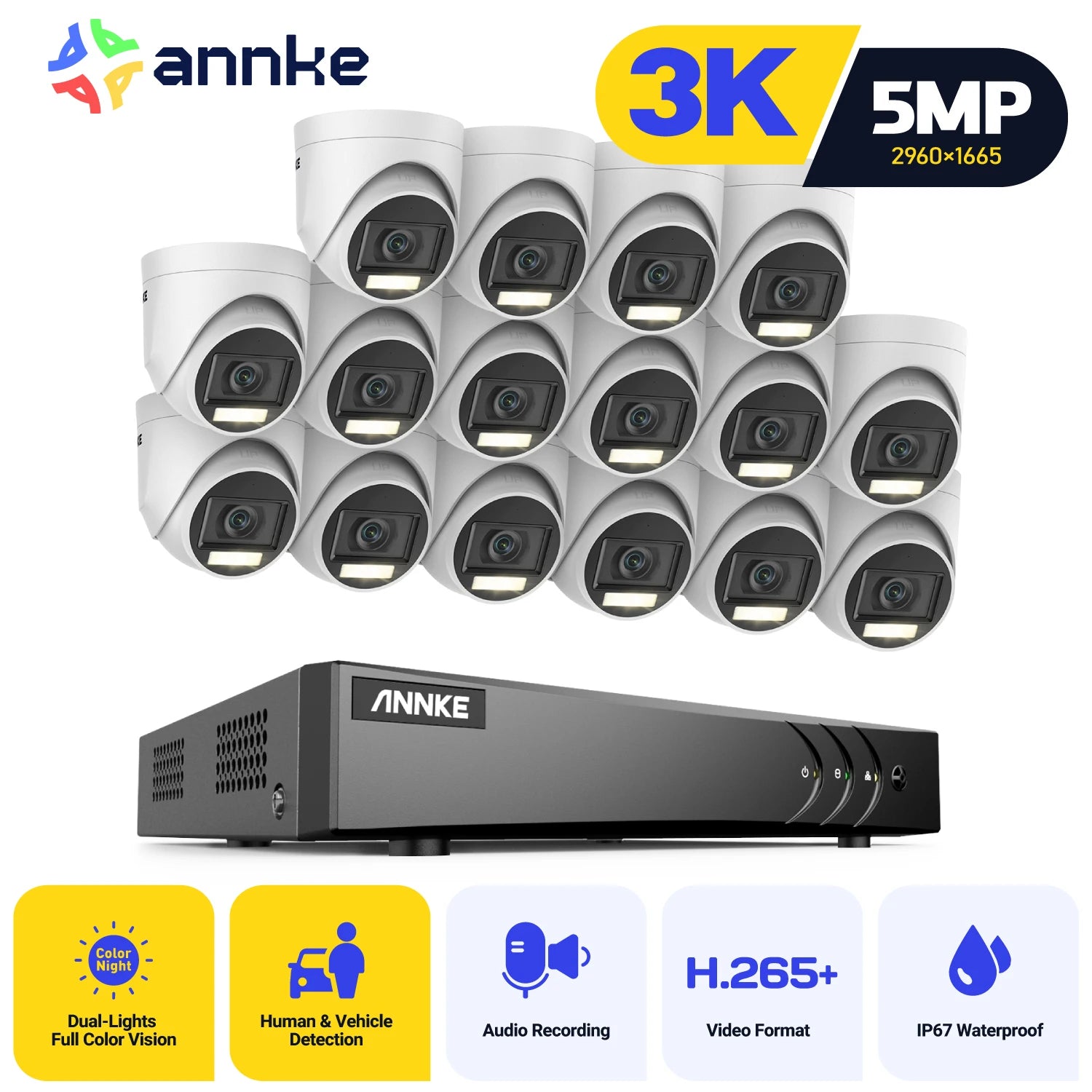

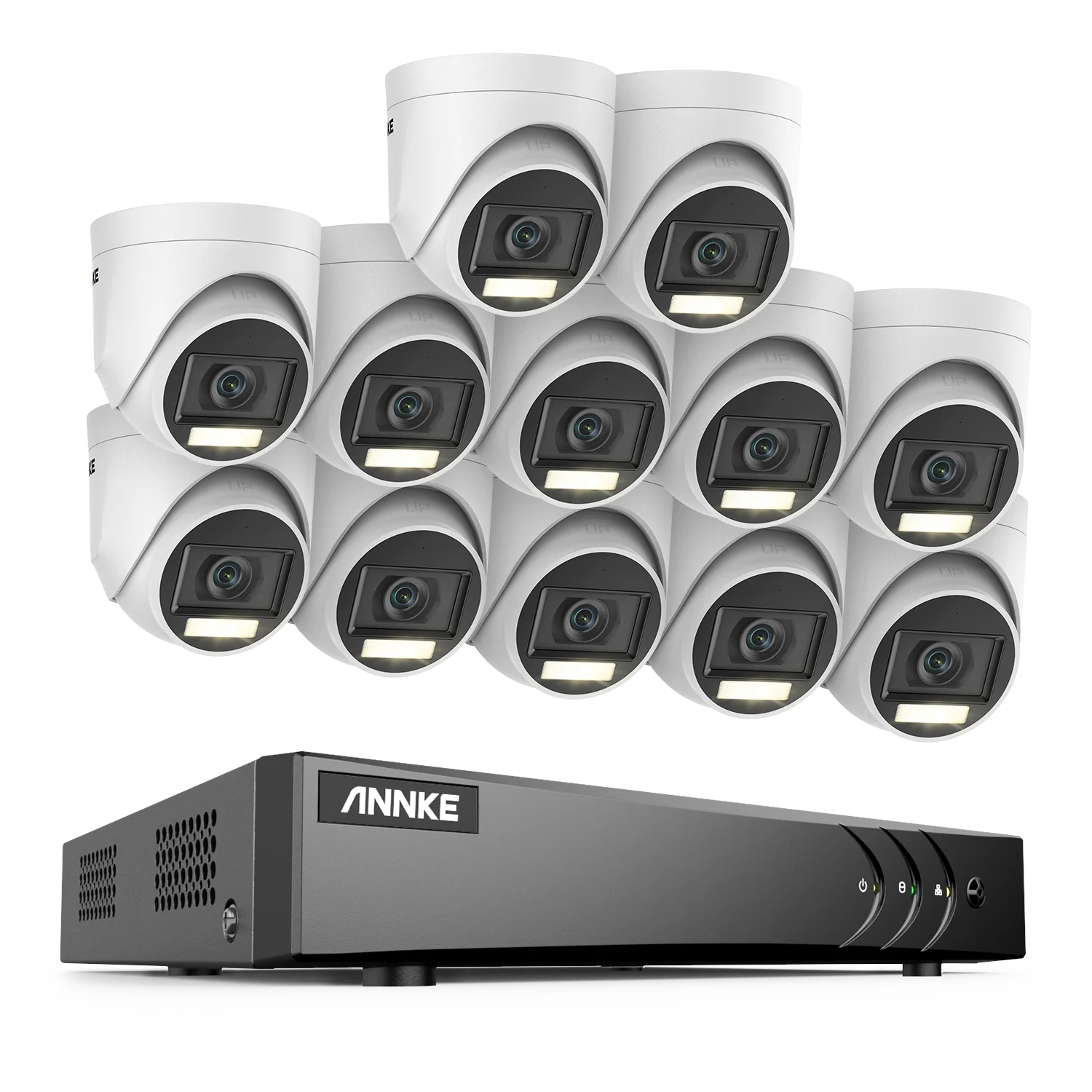

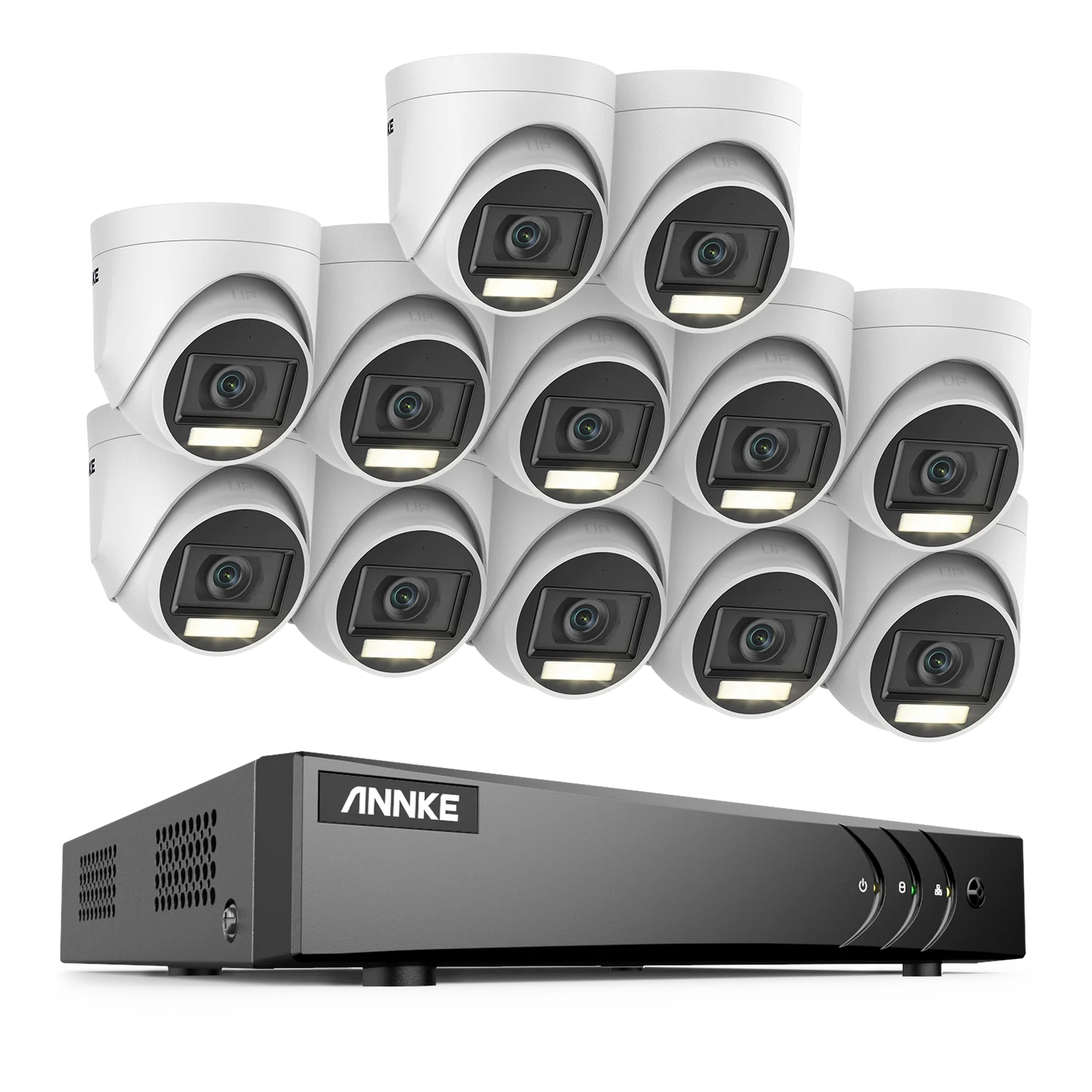

Annke 3K 16CH DVR Surveillance System With Turret Cameras
Annke 3K 16CH DVR Surveillance System With Turret Cameras
Couldn't load pickup availability
Secure your space with a hybrid camera system that records crisp 3K video and cuts storage costs without sacrificing reliability.
- Archive footage in 2960 × 1665 resolution while H.265+ compression halves your data usage, allowing you to fill a single drive up to 10TB.

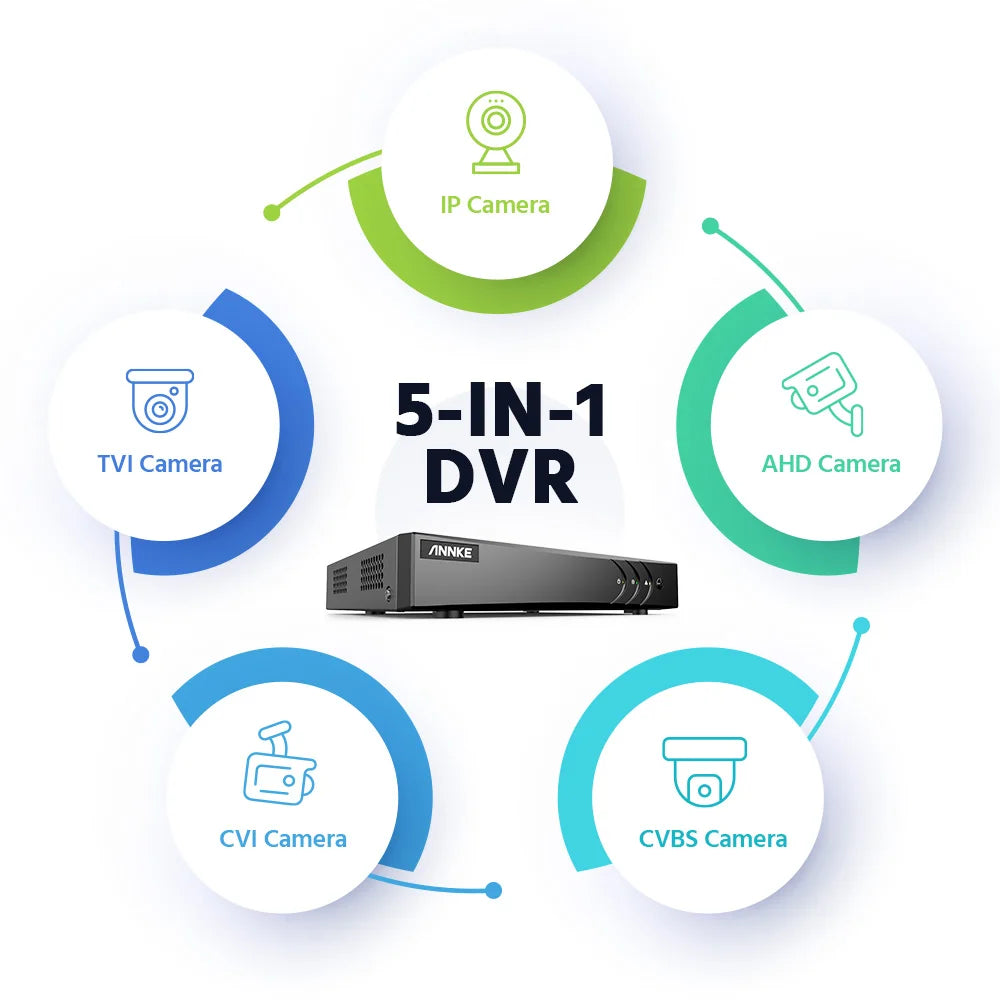

- Integrate with any existing coax wiring by manually switching between TVI, AHD, CVI, or CVBS outputs, then attach two network cameras to activate all sixteen channels.

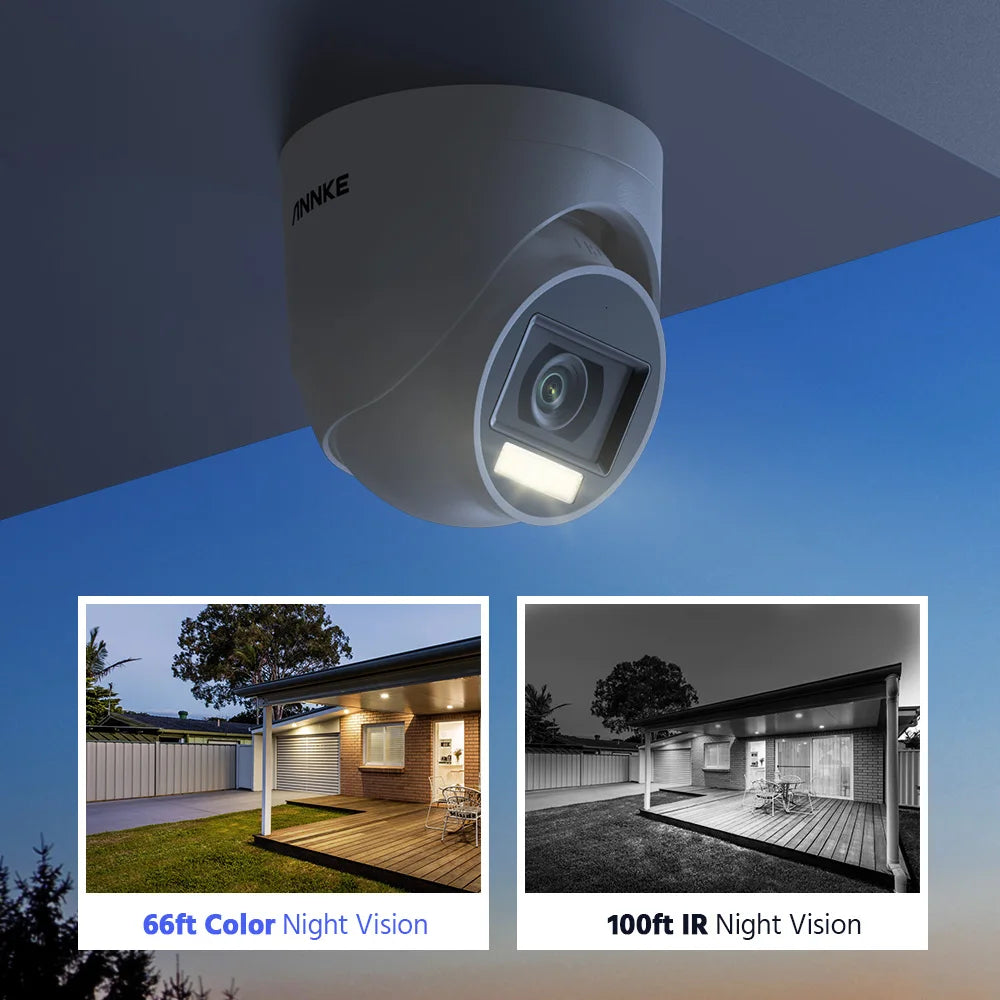

- Document activities through adaptive dual lighting that maintains silent infrared monitoring until machine learning isolates humans or vehicles, instantly activating twenty-meter color illumination.
- Stream live feeds and captured microphone audio directly from your smartphone while weather-sealed metal casings sustain uninterrupted recording during harsh seasonal temperature swings.
Model Number |
DW61LN |
|
DVR | ||
Video & Audio |
Video Compression |
H.264+/H.264/H.265/H.265+ |
Video Input |
16CH Analog HD/Analog + 2CH IP Video (up to 24 channel when IP enhanced mode on) |
|
Video Output |
HDMI and VGA Up to 1080P |
|
Audio Input |
1-ch RCA,16-ch via coaxial cable |
|
Audio Output |
1-ch RCA |
|
Supported Camera Types |
Support HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p; |
|
Analog HD Playback Resolution |
3K Lite/5MP Lite/4MP Lite@12fps,1080p/720p@15fps |
|
IPC Playback Resolution |
Up to 6MP |
|
Max Playback Channel |
4-ch |
|
Protocols |
TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS |
|
Motion Detection 2.0 |
All analog channels support human and vehicle detection to reduce false alarm |
|
Hard Drive |
HDD |
1 SATA interface |
HDD Capacity |
Up to 10TB capacity |
|

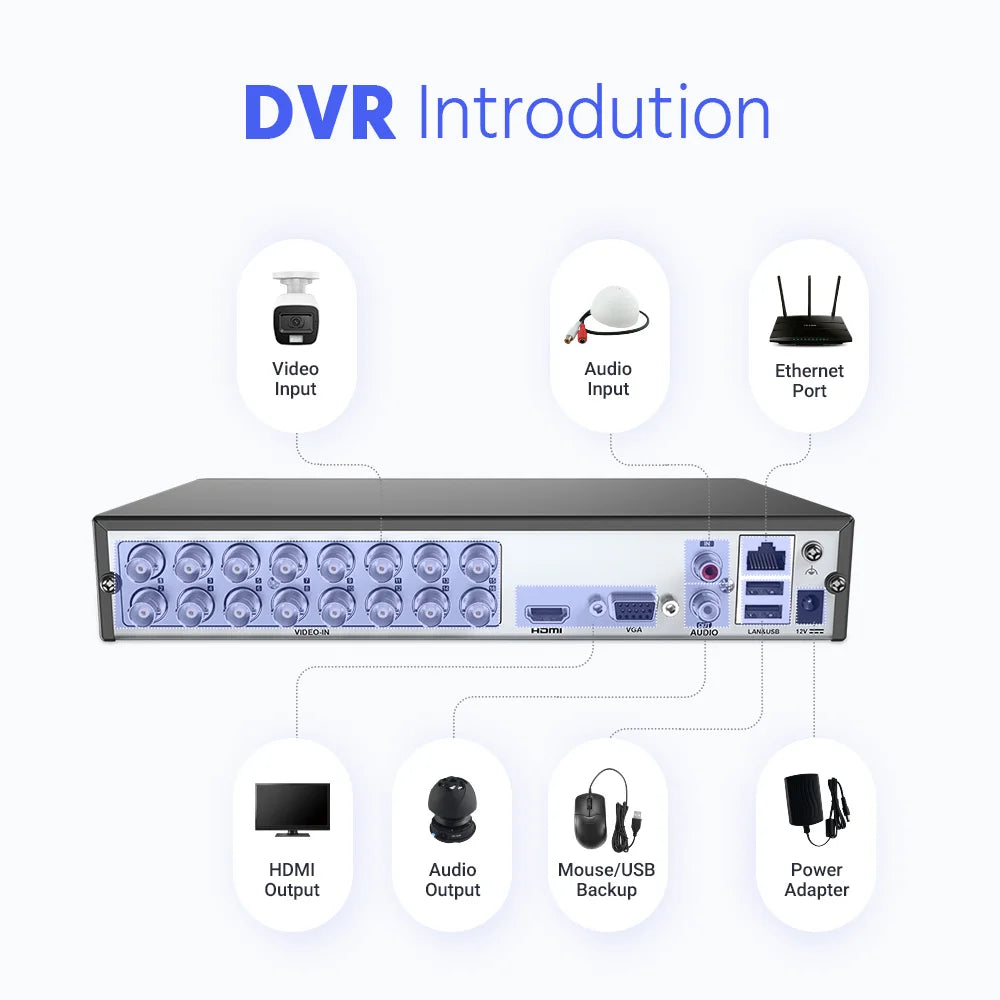

External Interface |
Network interface |
1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
USB |
USB2.0x2 |
|
General |
Operating Power |
DC12V,≤ 20W (without HDD) |
Working Temperature |
-14 °F – 131 °F /-10 °C – 55 °C |
|
Dimensions(W x H x D) |
260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) |
|
Weight (without hard disk) |
≤ 1.2 kg (2.6 lb)(without HDD) |
|
Model Number |
CR1CW |
|
Analog HD Camera | ||
Camera |
Image sensor |
3K CMOS Image sensor |
Video Resolution |
2960 (H) × 1665 (V)(16:9) |
|
Signal System |
PAL/NTSC |
|
Frame Rate |
TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps |
|
Lens |
2.8mm |
|
Min.Illumination |
Color:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
|
Angle of View |
Horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129° |
|
Supplement Light type |
1 white Light & 1 EXIR |
|
Supplement Light Range |
IR: Up to 30 m, white Light: Up to 20 m |
|
Supplement Light Mode |
IR light works normally, and it switches to white light when human or vehicle are detected at night. |
|
Wide Dynamic Range |
Digital WDR |
|
Audio |
Built-in mic |
|
IR Cut Filter |
Yes |
|
Video Output |
BNC, switchable TVI/AHD/CVI/CVBS |
|
General |
Housing |
Matal & Plastic |
Color |
White |
|
Operating Power |
12 VDC ± 25% |
|
Consumption |
Max. 2.9 W |
|
Operating Temperature |
-40 °F – 140 °F /-40 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP67 |
|
Dimension (L x W x H) |
80 mm × Ø 85.1 mm (3.1" × Ø 3.4") |
|
Weight |
Approx. 300 g (0.66 lb.) |
|
